Double Block Paved Driveway | Blackburn

Project Overview – Limestone Gravel Driveway in Blackburn

This project involved the full transformation of a tired, uneven driveway at a property in Blackburn, replacing the old asphalt and gravel surface with a fresh, durable double block paved driveway.

Before and After Comparison

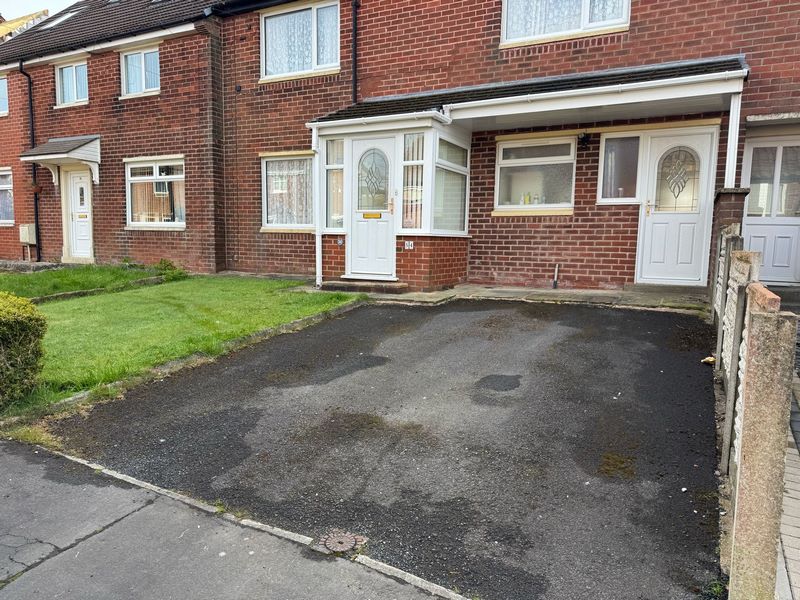

Before:

• Original driveway was made up of worn tarmac and patchy gravel with poor drainage and an untidy appearance.
• One side was sunken and uneven, while the other lacked definition and structure.
• The overall look was dated and didn’t complement the front of the property.

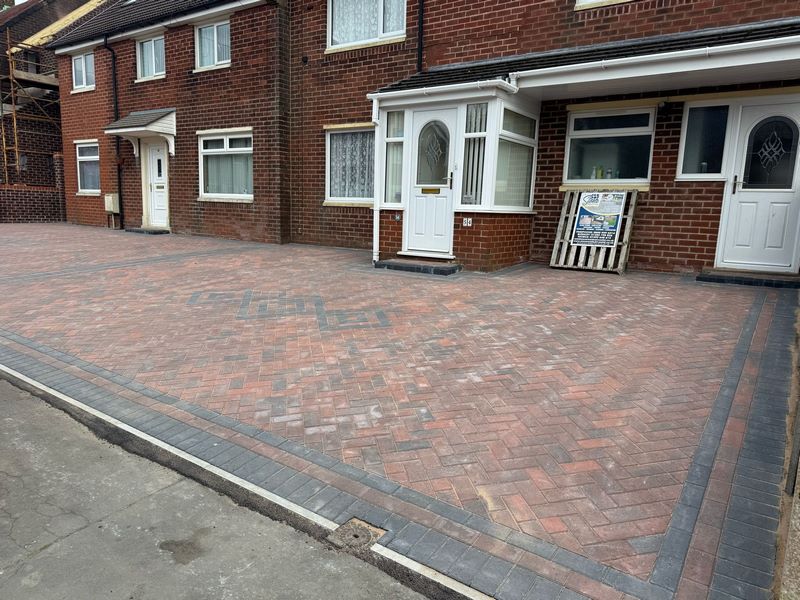

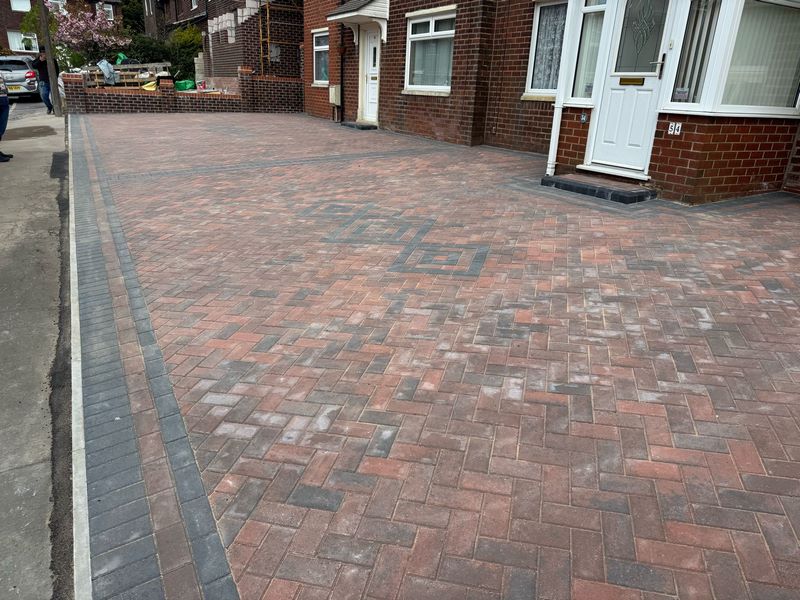

After:

• The new double driveway provides a clean, professional finish.
• It boosts the property’s kerb appeal.
• Improved drainage, stable surfacing and low maintenance means it’s built to last.

Materials Used

1. MOT Type 1 Crushed Limestone: For the sub-base layer
2. Geo-textile Membrane: For weed control and drainage
3. Block Pavers: Main surface
4. Kiln-Dried Sand: Swept into the joints and compacted for stability

Construction Stages

1. Site Clearance & Excavation:
   • Began by removing existing tarmac, gravel and any loose materials across both driveways.
   • All rubble, debris and excess soil were excavated and disposed of.
   • The area was dug to the required depth, ready for a new, stable foundation.
2. Ground Preparation:
   • Sub-base was formed using MOT Type 1 crushed limestone, compacted in layers to create a firm and durable base.
   • A geo-textile membrane was installed to prevent weed growth and assist with drainage.
   • Levels were adjusted to allow for sufficient water runoff and seamless integration with existing paths and thresholds.
3. Block Paving Installation:
   • Red block pavers were laid in a herringbone pattern to maximise strength and visual appeal.
   • A contrasting charcoal border was installed around the edges to frame the driveway neatly.
   • A custom charcoal square motif was added in the centre to provide a stylish focal point.
4. Finishing Touches:
   • All edges were haunched with concrete for long term stability.
   • Kiln-dried sand was brushed into the joints and compacted to lock the blocks in place.
   • The final result was a smart, maintenance double driveway with improved functionality and a modern aesthetic.
